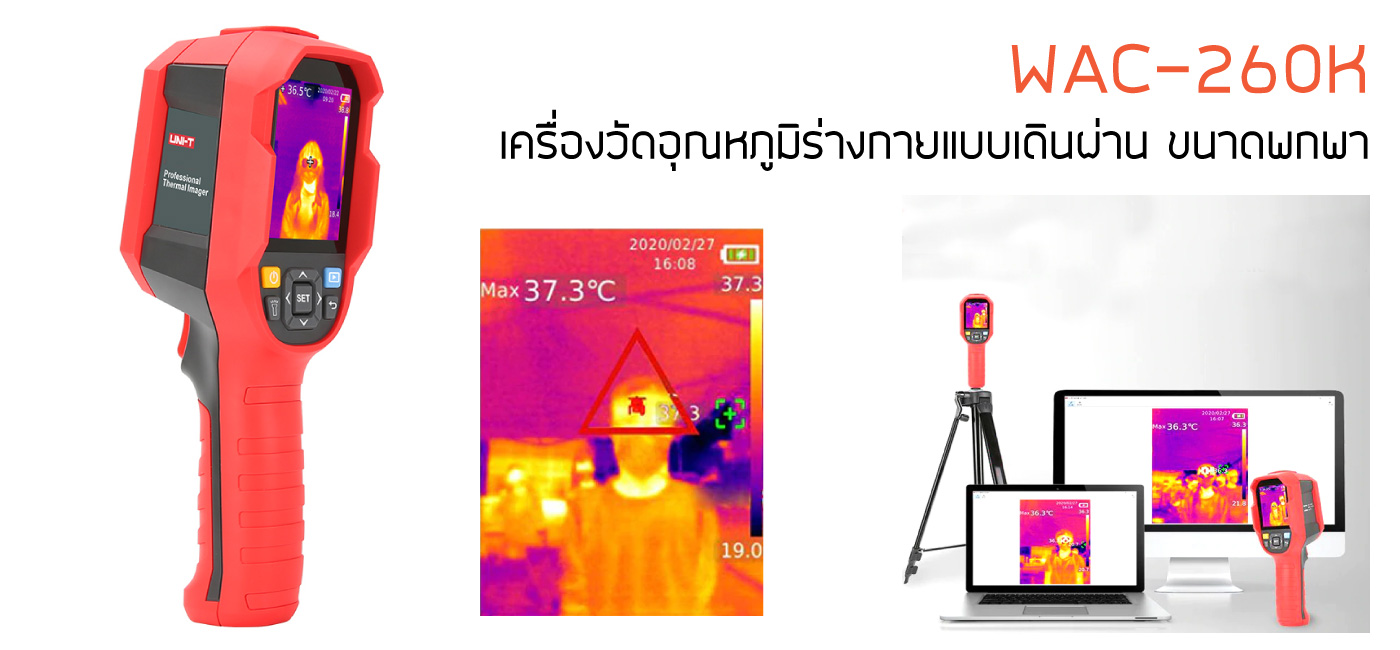

 WAC 260K Thermal Imager เครื่องวัดอุณหภูมิร่างกาย ระยะไกล แบบเดินผ่าน ขนาดพกพา

  • • วัดอุณหภูมิร่างกายระยะไกล ป้องกันการติดเชื้อ ลดความเสี่ยงจากการสัมผัสหรืออยู่ใกล้กลุ่มเสี่ยง
  • • วัดอุณหภูมิได้ถูกต้องรวดเร็ว ด้วยความละเอียด 256x192
  • • ตรวจจับอุณหภูมิร่างกายและแสดงผลแบบ Real-time

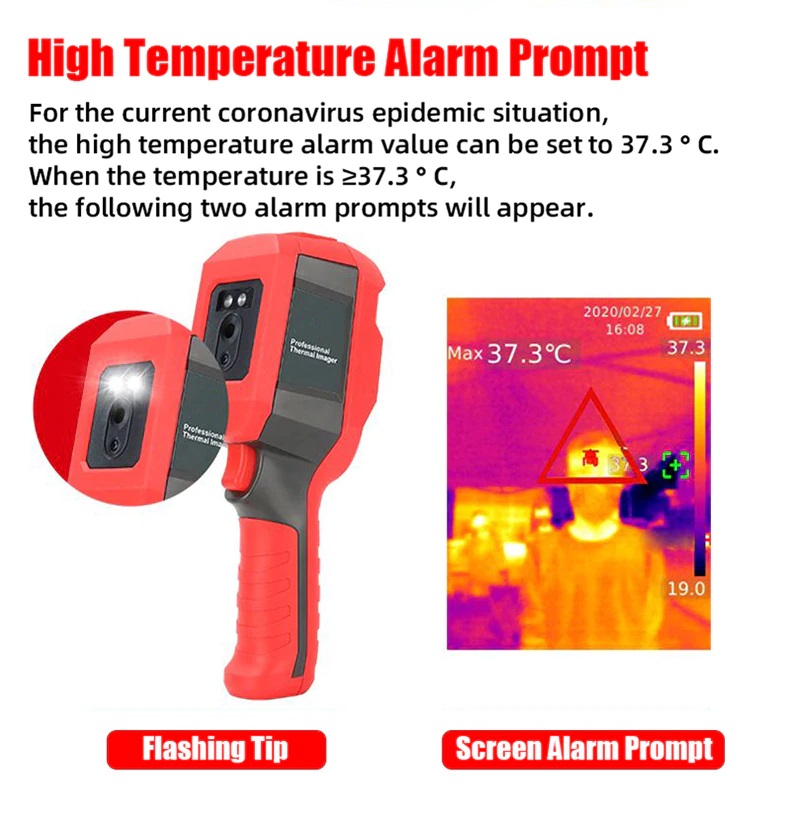

  • • มีแจ้งเตือนเมื่อพบผู้ที่มีอุณหภูมิร่างกายสูงเกินกำหนดทั้งสัญลักษณ์ที่หน้าจอ แสงแฟลช และเสียง
  • • ความผิดพลาดในการวัดเพียง ±0.5 °C (ระยะ 1 ม.)
  • • ระยะตรวจวัดอุณหภูมิอยู่ที่ 15 ซม. ~ 2 ม.
  • • ช่วงอุณหภูมิที่วัดได้อยู่ที่ 30°C ~ 45°C
  • • หน้าจอแสดงผล 2.8" TFT LCD
  • • แบต Li-ion ในตัว ใช้งานได้ต่อเนื่องยาวนานถึง 4-6 ชม.
  • • หน่วยความจำ 16GB
  • • เชื่อมต่อด้วย USB Type C
  • • เหมาะสำหรับงานคัดกรอง COVID-19, SARS ฯลฯ
  • • ผ่าน อย.

คุณสมบัติ

  • Sensor
  •    - Uncooled focal plane
  • Temperature range
  •    - 30˚C~45˚C
  • Resolution
  •    - 0.1˚C
  • Accuracy
  •    ±0.5˚C @25˚ ambient temperature
  • Optical measuring distance
  •    - 15 m
  • Temperature measurement response time
  •    ≤500ms (95% of reading)
  • Pixel of thermal imagery
  •    - 49152 (256x192)
  • Pixel dimensions
  •    - 12μm
  • Palettes
  •    - Iron red, rainbow, glowing white, glowing black, red, lava, high-contrast rainbow
  • Bandwidth of infraed spectroscopy
  •    - 8~14μm
  • Field of view (FOV)
  •    - 56°(H) × 42°(V)
  • Instantaneous field of view (IFOV)
  •    - 3.8 mrad
  • Thermal imaging sensitivity
  •    - <50mk
  • Frame rate
  •    - <25Hz
  • Temperature display
  •    - Center temperature measurement and high temperature tracking (default)
  • Image format
  •    - BMP
  • Image modes
  •    - Thermal imagery, visible camera, image blending
  • Temperature measuring point
  •    - Besides central point, 3 temperature measuring points can be added
  • Visible light
  •    - Yes
  • Resolution of visible light
  •    - 640×480
  • Display resolution
  •    - 320×240
  • Mixed setting
  •    - 0% (total visible light), 25%, 50%, 75%, 100% (total thermal imagery)
  • PC analysis software (PC)
  •    - Yes
  • Real-time image transmission

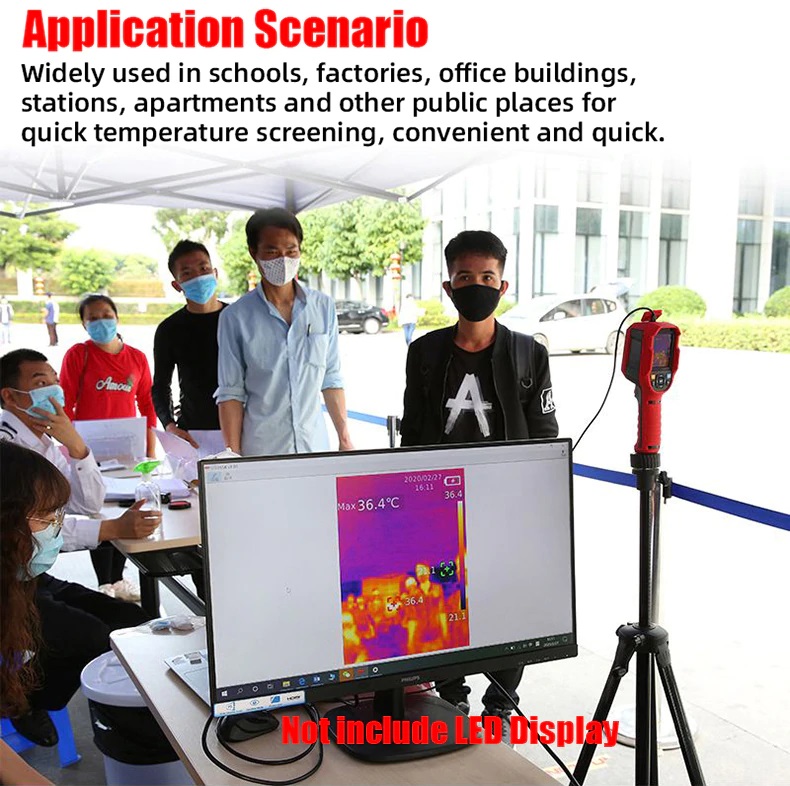

  •    - Yes (PC software image projection)
  • Data communication
  •    - Type-C USB
  • Auto power off
  •    - Selectable (5min, 10min, 30min), 30min auto power off (default)
  • Service time
  •    ≧6 hours
  • Charging time
  •    ≦5 hours
  • Charging voltage/current
  •    - 5V/2A
  • Image storage
  •    - 16GB Micro SD card

  • General Characteristics
  • Power
  •    - A single Li-ion 3.7V/5000mAh 26650 battery
  • Display
  •    - 2.8" TFT LCD
  • Product size
  •    - 236mm x 75.5mm x 86mm
  • Standard accessories
  •    - Manual, Type-C USB cable, 16GB TF card
  • Standard carton gross weight
  •    - 2.2kg

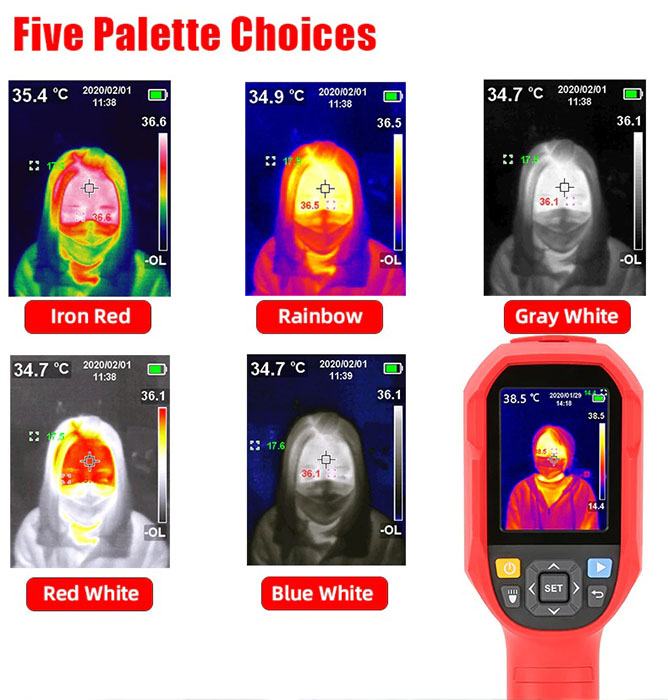

เลือกสีภาพความร้อนได้ 5 แบบ
