signature pad

WAC-1561

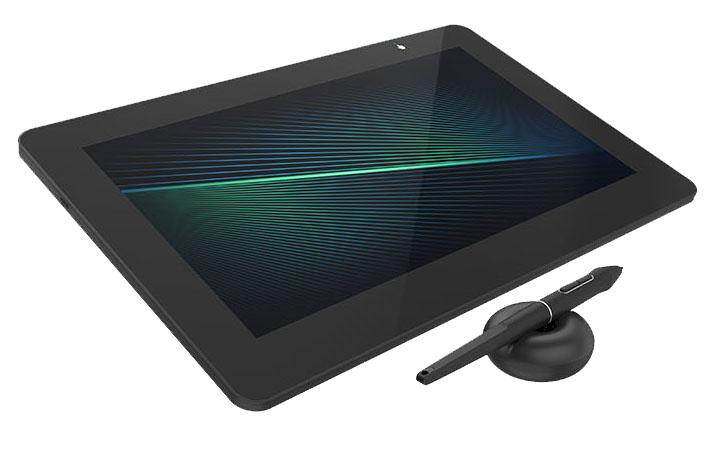

15.6” Handwriting pad for digital for digital graphic design

  • - จอ IPS LCD 15.6” แสดงผล 16.7 ล้านสี ภาพสวยคมชัด สีสันสดใส เหมาะกับการทำงานกราฟฟิกดีไซน์ทุกชนิด
  • - มาพร้อมปากกาไร้สาย ไม่ต้องใช้แบตเตอรี่ มีความไวต่อ แรงกด 8192 ระดับ
  • - เก็บภาพได้ละเอียดเหมือนวาดบนกระดาษ
  • - จอมัลติทัช 5 point touch ใช้ง่ายเหมือนหน้าจอมือถือ
  • - รองรับ Win/MAC
  • - เชื่อมต่อคอมพิวเตอร์ด้วย USB Type-C
signature pad
WAC-1561
เป็นกระดานวาดภาพขนาด 15.6 นิ้ว ความละเอียดหน้าจอสูง ภาพสีสดใส คมชัดสมจริง มาพร้อมกับปากกาไร้สายที่มีความไวต่อแรงกดถึง 8192 ระดับ ทำให้เก็บรายละเอียดของภาพครบถ้วนทั้งเฉดสี ความคมชัด น้ำหนักและความโค้งของเส้นเหมือนกับวาดบนกระดาษจริง จอมัลติทัชใช้ง่ายเหมือนหน้าจอมือถือ เหมาะสำหรับการออกแบบกราฟฟิกทุกชนิด เช่น 3D, อนิเมชั่น, ฟิล์มโปรดักชั่น และกราฟฟิกดีไซน์ทั่วไป

คุณสมบัติ

  • LCD Display
  • - Screen size 15.6 in.
  • - Native resolution 1920 x 1080 (16:9)
  • - Backlight IPS LED
  • - Active area size 344.16 x 193.59 mm.
  • - Contrast ratio 1200 : 1 (typical) , 900 : 1 (min)
  • - Brightness 350 cd/m2
  • - Response time 16.4 ms (typical), 25 ms (Max)
  • - Viewing angle 89O / 89O (H) / 89O / 89O (V) (Typical) (CR≥10)
  • - Gamut 72% (NTSC)
  • - Display color 16.7 M (8 bit)

Pad and Pen

  • - Reading technology Battey-free electromagnetic resonance
  • - Coordinate resolution 5080 LPI
  • - Pressure levels 8192
  • - Coordinate accuracy ±0.5 mm. (Center) , ±3 mm. (Corner)
  • - Reading height 10 mm.
  • - Report rate 233 point per second
  • Touch input
  • - Capacitive 5 point finger touch

General

  • - Power supply 100-240V AC, 50/60 Hz
  • - Communication interface USB type-C
  • - Button Power switchx1, touch switch x1
  • - Net weight 1.8 kg
  • - Dimension 409.9 x 264.9 x 19.43 mm.
  • - Main body color White or black
  • - OS Support Win 7 or later, MAC OS 10.11 or later
  • - Power consumption 8W
  • - Standby consumption 0.3W
