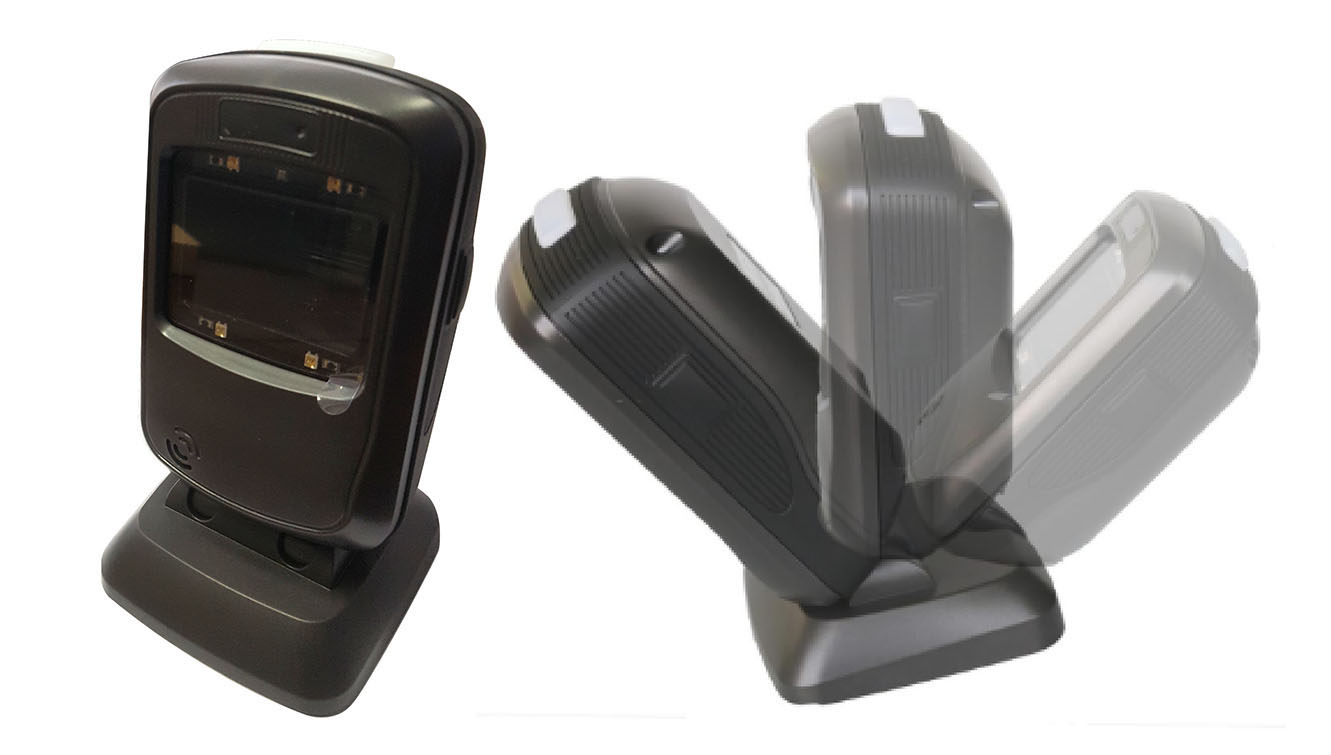

WQR-1
1D/2D Barcode and QRCode Scanner
เครื่องอ่านบาร์โคดและ QRCode แบบตั้งโต๊ะ
อ่านได้ทั้งบนกระดาษและหน้าจอมือถือ

Main Features
- อ่านบาร์โคดและ QRCode ทั้งแบบ 1D/ 2D ทั้งจากบนกระดาษและหน้าจอมือถือได้
- รองรับ RS232, USB, PS2
- มีระบบป้องกันการกระแทก ตามมาตรฐาน IP54
- ดีไซน์สวย ทันสมัย เล็กกะทัดรัด น้ำหนักเบา เคลื่อนย้ายง่าย
- เหมาะสำหรับการใช้งานในซูเปอร์มาร์เก็ต, ไปรษณีย์, รับส่งพัสดุภัณฑ์, ห้างสรรพสินค้า, ธนาคาร ฯลฯ

Specifications
Technologies
Scan type : CMOS image scan
Light Source Indicator : light 617 nm LED
Interface : USB/ RS232/PS2
Resolution : 5mil
Print Contrast : 0.25
Scan Angel : Yaw(Skew)60 degree, Pitch 65o, Roll(Tilt) 360 degree
Operation : Manual/ Auto Continue Scan
Support Symbologies
1D Codes : UPC/EAN, UPC/EAN with supplementals, BooklandEAN, ISSN, UCC Coupon Extended Code, Code128, GSI-128, IBST 128, Code 39, Code 39 FullASCII, Trioptic Code 39, Code 32, Code 93, Code 11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GSI Databar variants, Korean 3 of 5, ISBT Concat
2D Codes : PDF417, MicroPDF417, CompositeCodes, TLC-39, Data Matrix, Maxicode, QR Code, Micro QR, Aztec

Electronical
Voltage : 5V
Working Current : 85Ma (Working); 36mA(Idle)
Environment
Operation Temperature : -20 – 50 celcius degree
Storage Temperature: -40 – 70 celcius degree
Humidity :5%-95%
