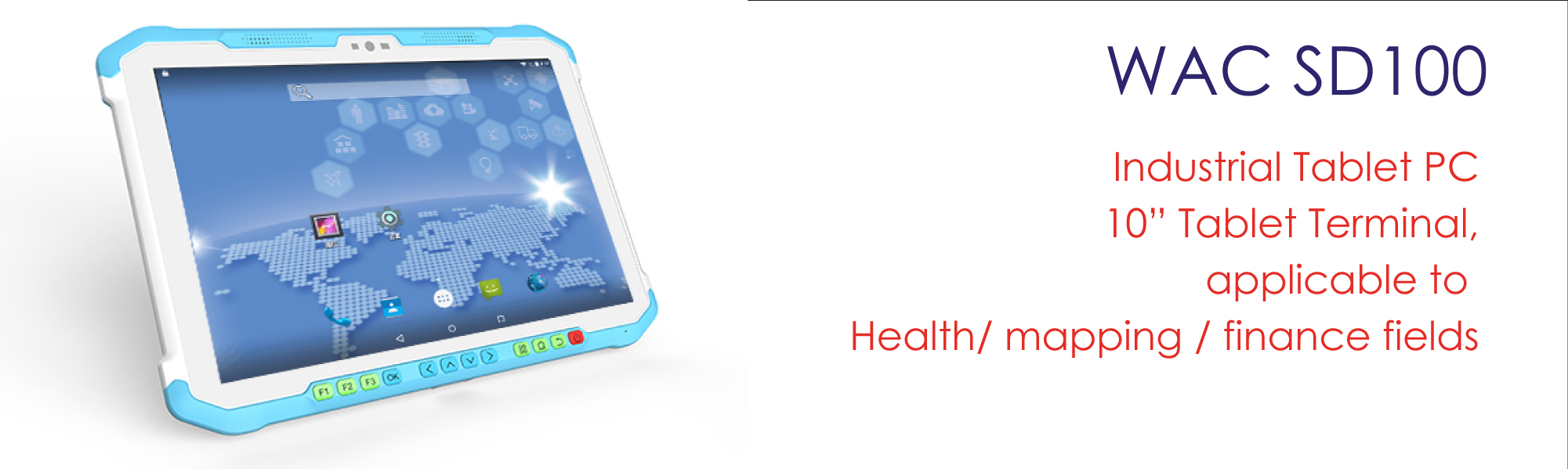

WAC SD100
10 inch Tablet Terminal, applicable to Health/ mapping / finance fields

• ดีไซน์สวยทั้นสมัย บางเฉียบ น้ำหนักเบา
• หน้าจอ 10” ภาพสวยคมชัดด้วยความละเอียด 1200x1920 HD
• รองรับการอ่านบัตรสมาร์ทการ์ด, RFID และบาร์โคด 1D/2D
• ใช้ทน ชาร์ตเร็ว ด้วยแบตเตอรี่ขนาด 900mAh
• ระบบลำโพงคู่ เสียงดังชัดเจน ทำให้คุยได้ง่ายและชัดเจนแม้จะอยู่ในที่ที่เสียงดัง
• GPS มีความแม่นยำสูง
• ทนทานต่อแรงกระแทก, ตกพื้น, กันน้ำ/ ลม/ ฝน/ หิมะ/ ทราย
• ทำงานได้ตั้งแต่อุณหภูมิ -20 oC ถึง 60 oC

Specifications

CPU
octa-core 1.8/2.2GHz, Qualcomm Snapdragon 625 processor
OS
Android 7.1
RAM
2GB
ROM
16GB
Camera
Rear camera 13MP AF with LED flash, Front Camera 5MP FF
Display size/type
10 inch, IPS highlight screen
Resolution
1200*1920 WUXGA
Touch Screen
5-point capacitive touch screen
Size
254*176*17.4 mm.
Weight (with battery)
800g
Battery capacity
9000mAh, the typical working time is not less than 10 hours
Charging
QC2.0 fast charging, support charger
Bluetooth
BT4.1 BLE
Wi-Fi
IEEE 802.11 a/b/g/n 2.4G 5Gdual frequency
WWLAN
FDD-LTE B1/B3/B5/B8 TDD-LTE B38/B39/B40/B41 TDSCDMA B34/B39 WCDMA B1/B5 GSM B3/B5/B8 CDMA1x/CDMA2000 BC0
GPS
positioning module GPS+BD+GLONASS
Audio
Front dual stereo speakers, Volume 90db±3db(test distance 10cm)
Expansion
Micro SD(TF) card slot up to 128GB
Interface
USB-Type C, external expansion interface Pogo (USB, serial, IIC, power supply, etc.), 3.5mm headphone jack, charging base PogoPogo
Keypad
12 buttons
Notification
Sound, vibration, LED prompt
Operating temperature
-20℃ to 60℃ Storage temperature -30℃ to +80℃
Working Humidity
5% to 95%
IP Class
IP65 Drop test 6 sides multiple drop from the height of 1 meter to the concrete floor
ESD
±16kV Air Discharge, ±8kV Contact Discharge
Certificate
CCC、CTA
RFID (High frequency)
Supporting Protocol : ISO14443A/B, ISO15693, NFC reading distance: 0~5cm
RFID (Ultra High Frequency)
Support ISO18000-6C protocol, tag reading speed>200/s, reading distance>5M
Barcode scanning

Support code system SD5670 compatible N6603(1D&2D): AZTEC、CODABAR、CODE11、CODE128、EAN128、CODE39、CODE49、CODE93、COMPOSITE、DATAMATRIX、EAN8、EAN13、INT25、MAXICODE、MICROPDF、PDF417、POSTNET、OCR、QR、RSS、UPCA、UPCE、ISBT、BPO、CANPOST、AUSPOST、IATA25、CODABLOCK、JAPOST、PLANET、DUTCHPOST、MSI、TLC39、TRIOPTIC、CODE32、STRT25、
