Easy to install – Eliminates the need to install drivers; uses native supported CCID drivers within the operating system.
Readily Compliant – Meets all relevant industry standards for smooth integration in PC environment
Portable Form Factor – Unique size makes it an ideal reader for large-scale deployments and mass distribution
Suits Any Application – Compatible with virtually any smart card and major PC operating system |
| |

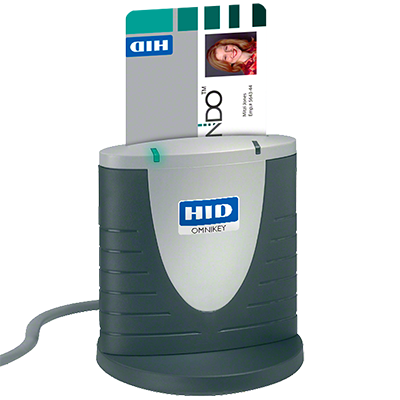

| The OMNIKEY® 3121 is a high-performance, USB smart card reader for desktop use that features multiple-base mounting options and a robust housing. Compliant with all industry standards, this reader is compatible with virtually any contact smart card, operating system and a variety of applications. The OMNIKEY 3121 is easy to install and wellsuited for all contact smart card operations, including single sign-on, online banking or digital signature applications. |
|
| Features |
| - Meets major standards, including ISO 7816, USB CCID, PC / SC, and HBCI (Home Banking Computer Interface) Specification |
| - Supports power management to support low energy schemes |
| - UPC barcode for easier logistics |
| - Bulk or single packaging option available |
| - Interchangeable standing base options available for both vertical and horizontal configurations, including adhesive attachment that easily mounts to any PC monitor |
| - USB CCID support makes integration into an existing system the easiest ever by connecting host and smart card reader without the need for additional drivers |
| - All major operating systems supported |
| - Meets GSA FIPS 201 requirements |
| - Supports high-speed data transmission |
|
| Specification |
| SMART CARD INTERFACE |
| |
Card Size |
ID-1 (Full size) |
| |
Standards |
ISO 7816 |
| |
Supported Card Types |
Class A: 5V @ 60 mA; Class B: 3 V @ 60 mA; |
| |
|
Class C: 1.8V @35 mA |
| |
|
ATR response time up to 1.6 s |
| |
Protocols |
Asynchronous: T=0; T=1 |
| |
|
Synchronous: S=8 (I²C) ; S=9 (3-wire); S=10 (2-wire) |
| |
Insertion Cycles |
100,000 |
| |
Interface Speed |
420 kbps |
| |
Clock Frequency |
up to 12 MHz |
| |
Smart Card detection |
Movement detection with auto power-off;
|
| |
|
Automatic detection of smart card type; |
| |
|
Short circuit and thermal protection |
| |
8-Pin Handling |
C4 / C8 supported |
| |
| HOST INTERFACE |
| |
USB Interface |
USB 2.0 Full Speed Device (12 MBps) |
| |
|
USB 3.0 extended operability, tested with hubs/controllers |
| |
Connector / Cable |
USB Type A connector; 59.1" (150 cm) cable |
| |
Operating Systems |
Windows 10/8.1/8/7/Vista/Server 2012/ |
| |
|
Server 2008R2
Windows CE (5/6/7) depending on hardware
Linux Debian 6.0+ / Ubuntu 11.04+/ Fedora 15+; Open SUSE 11.4+
Mac OS X; AndroidTM |
| |
Driver |
CCID native driver from operating system |
| |
Supported APIs |
PC/SC - API |
| |
| HUMAN INTERFACE |
| |
Status indicator |
Dual-color LED (green & red) |
| |
| HOUSING |
| |
Housing |
Two-tone grey, ABS plastics |
| |
Dimensions |
3.15" x 2.64" x 1.1" (80 x 67 x 28 mm) |
| |
Weight |
Reader only 3.88 oz (110g); |
| |
|
Standard standing base 1.09 oz (31g) |
| |
| OPERATING CONDITIONS |
| |
Operating Temperature |
32-131 F (0-55°C) |
| |
Operating Humidity |
10-90% rH |
| |
Storage Temperature |
-4 - 176 F (-20 - 80°C) |
| |
Meantime Between Failure (MTBF) |
500.000 hours |
| |
| COMPLIANCE AND REGULATORY |
| |
Compliance / Certification |
EMVCo Terminal Level 1
USB 2.0; TAA; GSA Fips 201 approved list |
| |
Regional certifications |
CE, FCC, UL, VCCI, KCC, MIC, RCM (C-Tick) |
| |
Environmental |
WEEE, RoHS, Reach |
| |
| |
|
| |
